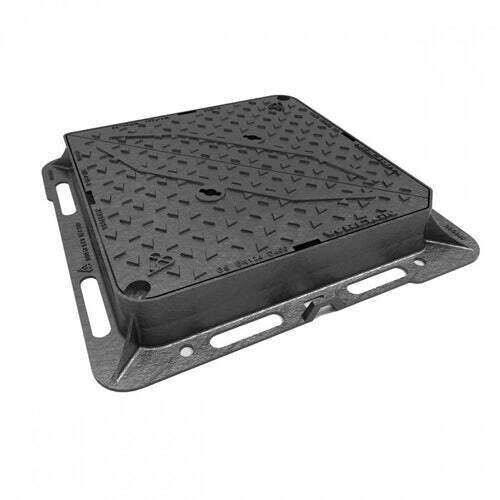

675x675 Wrekin Highways Ductile Iron Manhole Cover 150mm - D400

The Highway range of access covers conforms to BS EN 124:2015 requirements and also includes patented safety provisions and design features to ensure safe and robust performance. Wrekin’s Highway manhole covers are designed and manufactured to meet the enhanced requirements of national highway authorities’ HA 104/09 specification.

• For use in a Group 4 Class D400 carriageway environment
• Compliant with BS EN 124
• Third party certified by BSI
• Patented frame design with enlarged frame corners that help dissipate load
• Complies with UK Highways Authority specification HA 104/09 with enlarged frame flanges and corners and the inclusion of lifting points
• A patented safety keyway prevents accidental disengagement during the lifting operation. Also compatible with standard D400 lifting keys.
• Three point suspension on covers for non-rock stability
• Indexed covers ensure correct fitting
• Manufactured from strong and highly durable ductile iron
• Mechanical lifting points

Dimensions

Clear Opening Size: 675mm x 675mm x 150mm
External Dimensions: 890mm x 890mm

Available options: Locked; Badged ‘SW’, ‘FW’ ect.); Ventilation holes; Sealing plate; Safety grill; Anti-slip coating (60+ PSRV).
