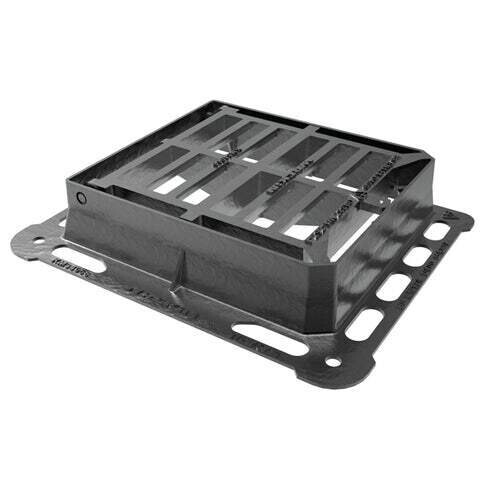

Wrekin Tri-Star Ductile Iron Gully Grate 430mm x 370mm x 150mm - D400

£96.00
Price incl. VAT (20%) £16.00
In stock
Product Details

Wrekin Tri-Star's ductile iron hinged gully addresses many issues related to cost-effective products. The frame has been designed to suit all existing gully pot styles and will sit over a typical 450mm circular or horseshoe chamber. The frame has been designed with an anti-debris feature to stop the backfill material entering the chamber.

This range of D400 Ductile Iron gully grates fully comply with BS EN 124:2015 and carries the British Standard Kitemark. The captive hinge allows for a single unit opening with anti theft feature.

  • Wedge seat for non-rock and non-slide stability
  • For use up to a Group 3 locations carriageway environment
  • All fully comply with BS EN 124:2015 and are Kitemarked by BSI
  • Complies fully with Highways England (Formerly UK Highways Agency)
  • 1050cm² waterway area
  • Manufactured from strong and highly durable ductile iron
  • Captive hinges reduce theft risk whilst allowing easy lifting for gully cleaning

Dimensions

Clear Opening Size: 430mm x 370mm x 150mm
Clear Base Opening Size: 450mm x 400mm
Over Frame Size: 595mm x 475mm
Waterway Area: 1050cm2
